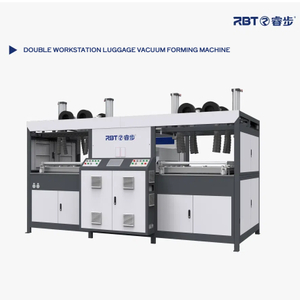

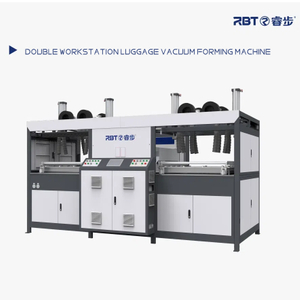

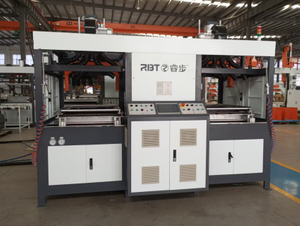

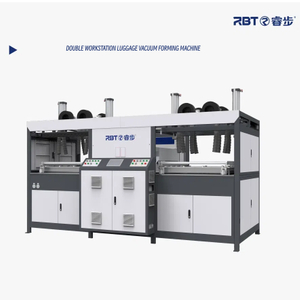

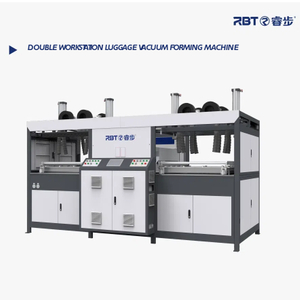

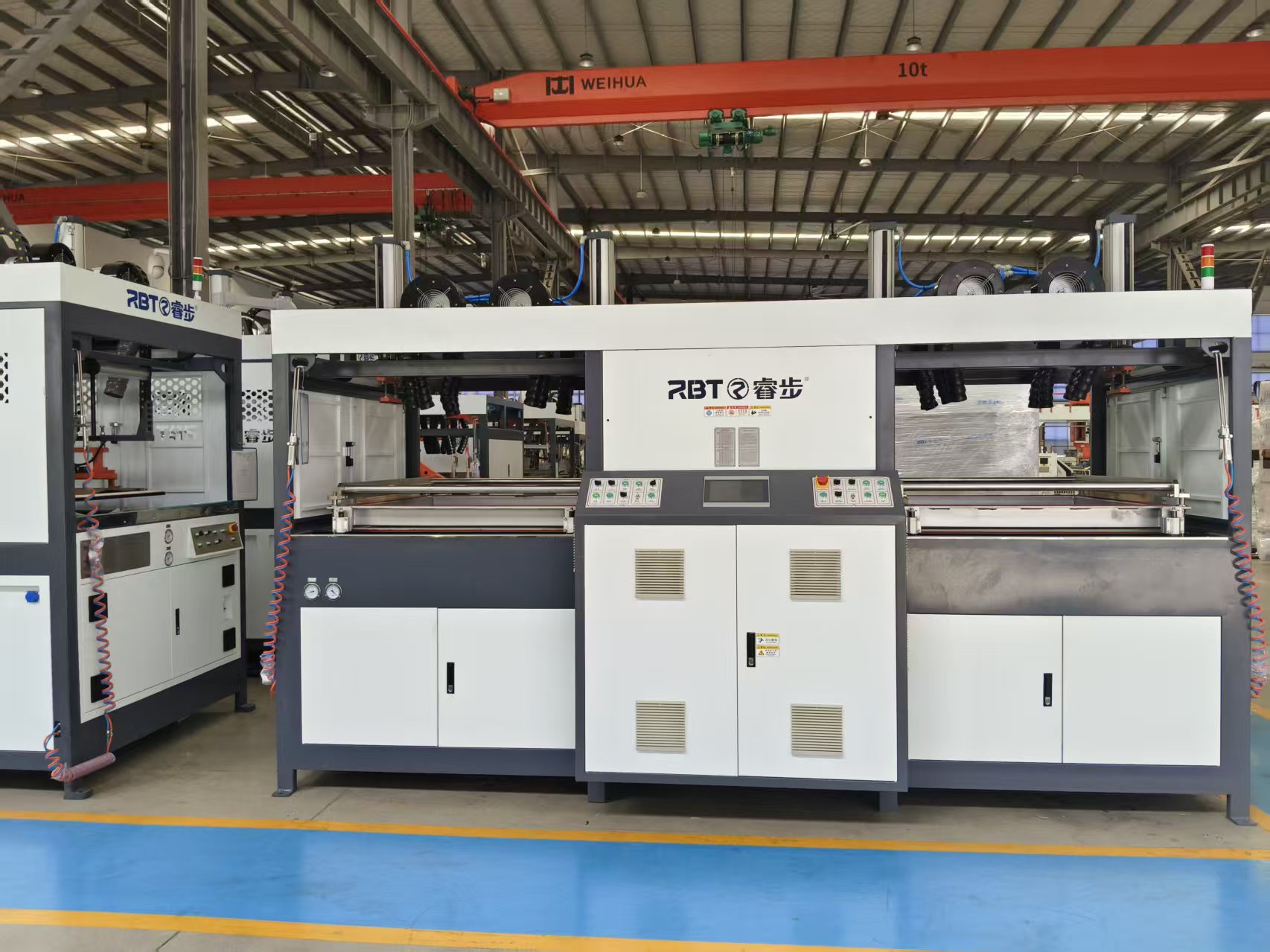

● This Luggage Vacuum Forming Machine is composed of a molding system, heating system, control system, etc. As a suitcase making machine, it is designed to streamline the luggage manufacturing process efficiently.
● The operation of the luggage making machine is divided into left and right stations. The left frame enters the middle heating furnace and is heated according to the set time. The right frame can be shaped, pick and place materials at the same time. Then the right frame is moved into the middle heating furnace for heating according to the set time, and alternately circulates, making it ideal for a Luggage Production Line.
● Install laser distance measurement to control the plate at a certain distance to prevent it from falling after being heated for too long, which is crucial in the polycarbonate luggage manufacturing process.
● The Luggage Vacuum Forming Machine is equipped with a vacuum box to ensure sufficient vacuum capacity, and the left and right forming stations are respectively equipped with devices such as blowing, primary small vacuum, secondary large vacuum, and demolding air blowing. Among them, there is a corresponding gate valve switch for bubble blowing and a small vacuum, and the flow rate can be controlled by the gate valve switch.
● The machine only needs to disassemble and install the mounting strip on the mold installation base plate to replace the mold, which speeds up the process of changing molds. The Aluminum Mould will not be dropped when the power is turned off; it can also be directly installed on the installation base plate.
● The fan cooling system of the left and right stations of the luggage making machine respectively adopts 4 high-efficiency centrifugal fans, which can flexibly adjust the angle of the air outlet and accelerate the cooling and shaping of the cabinet, thereby improving production efficiency in the Suitcase production process.

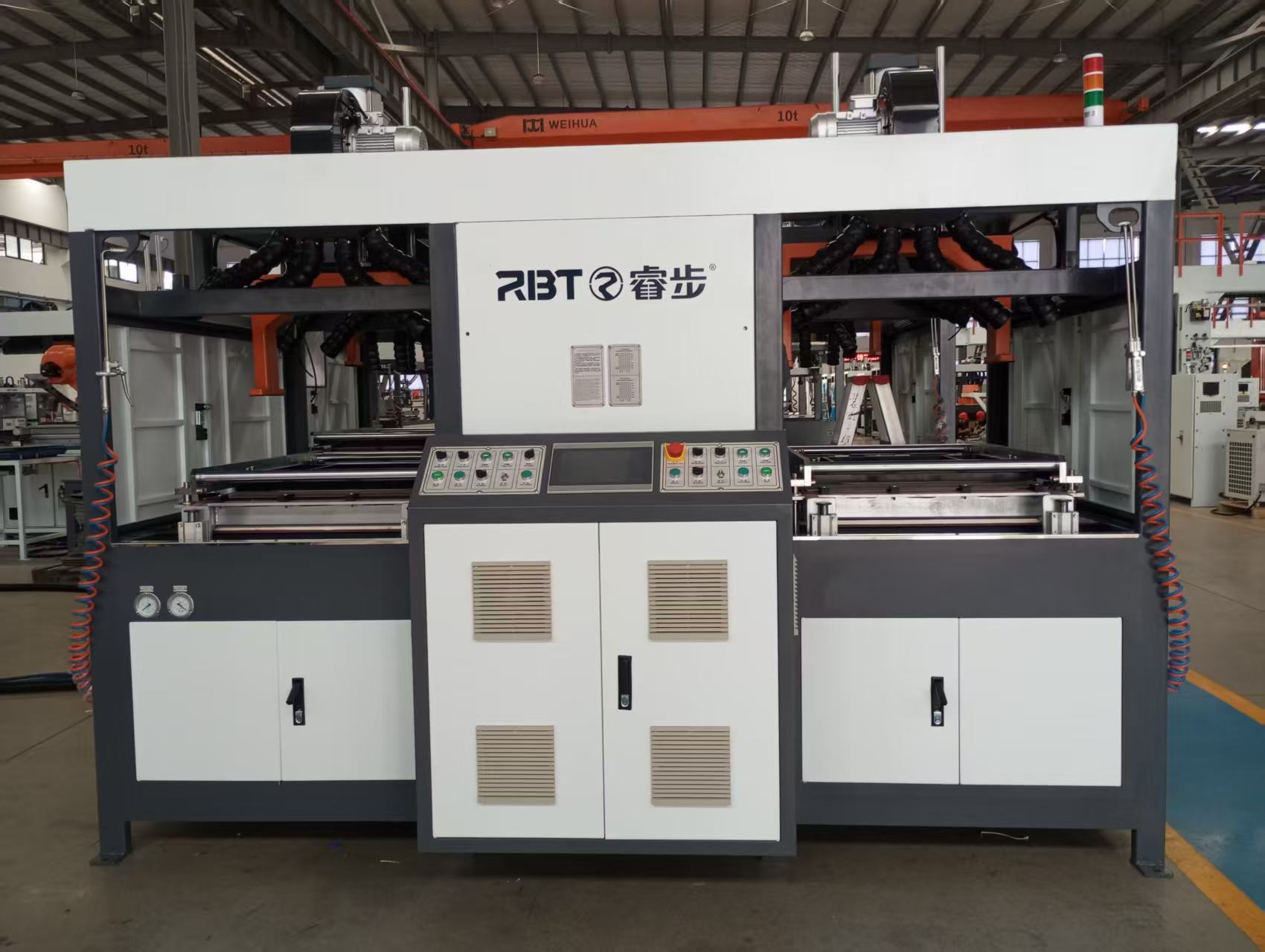

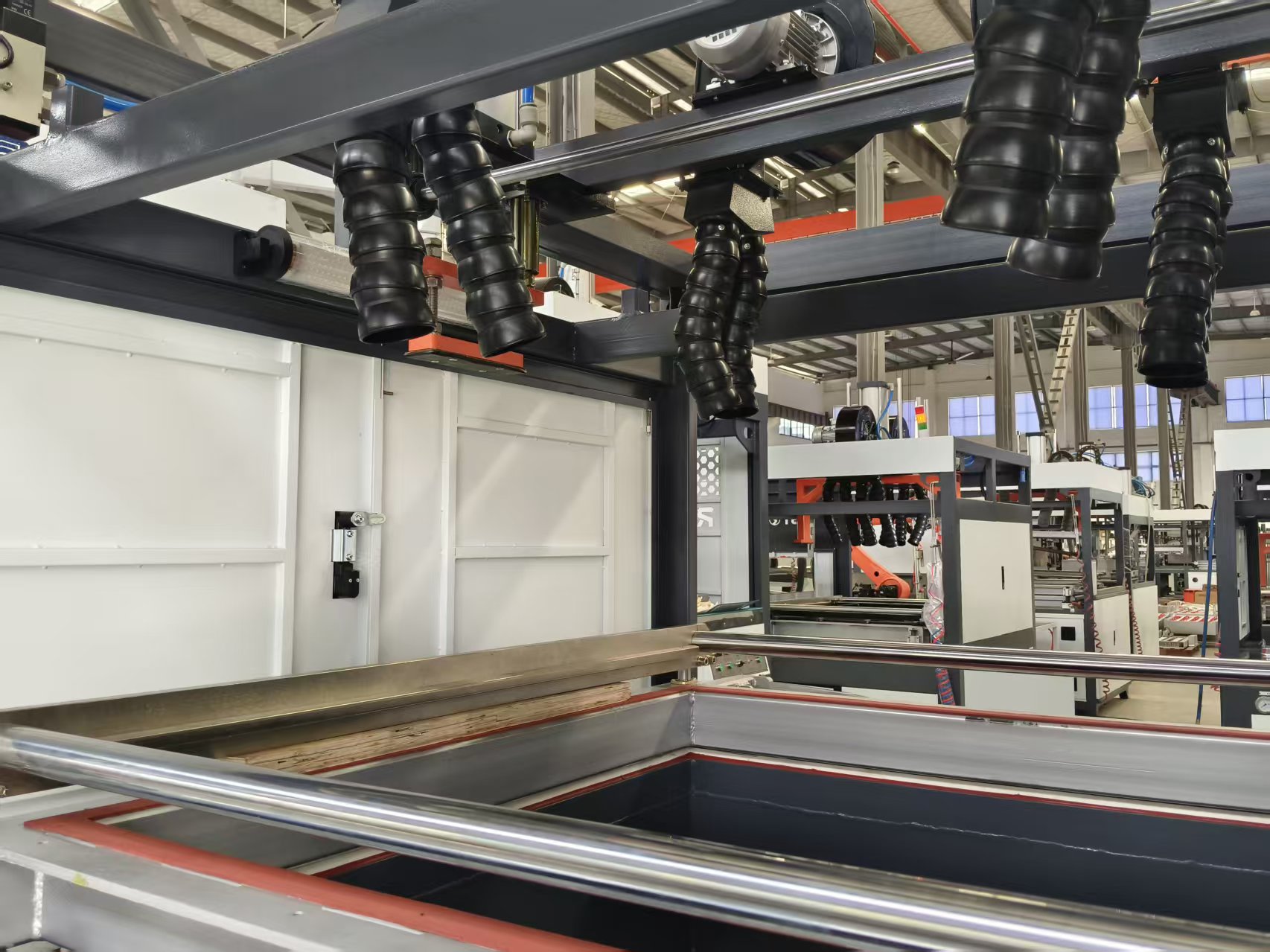

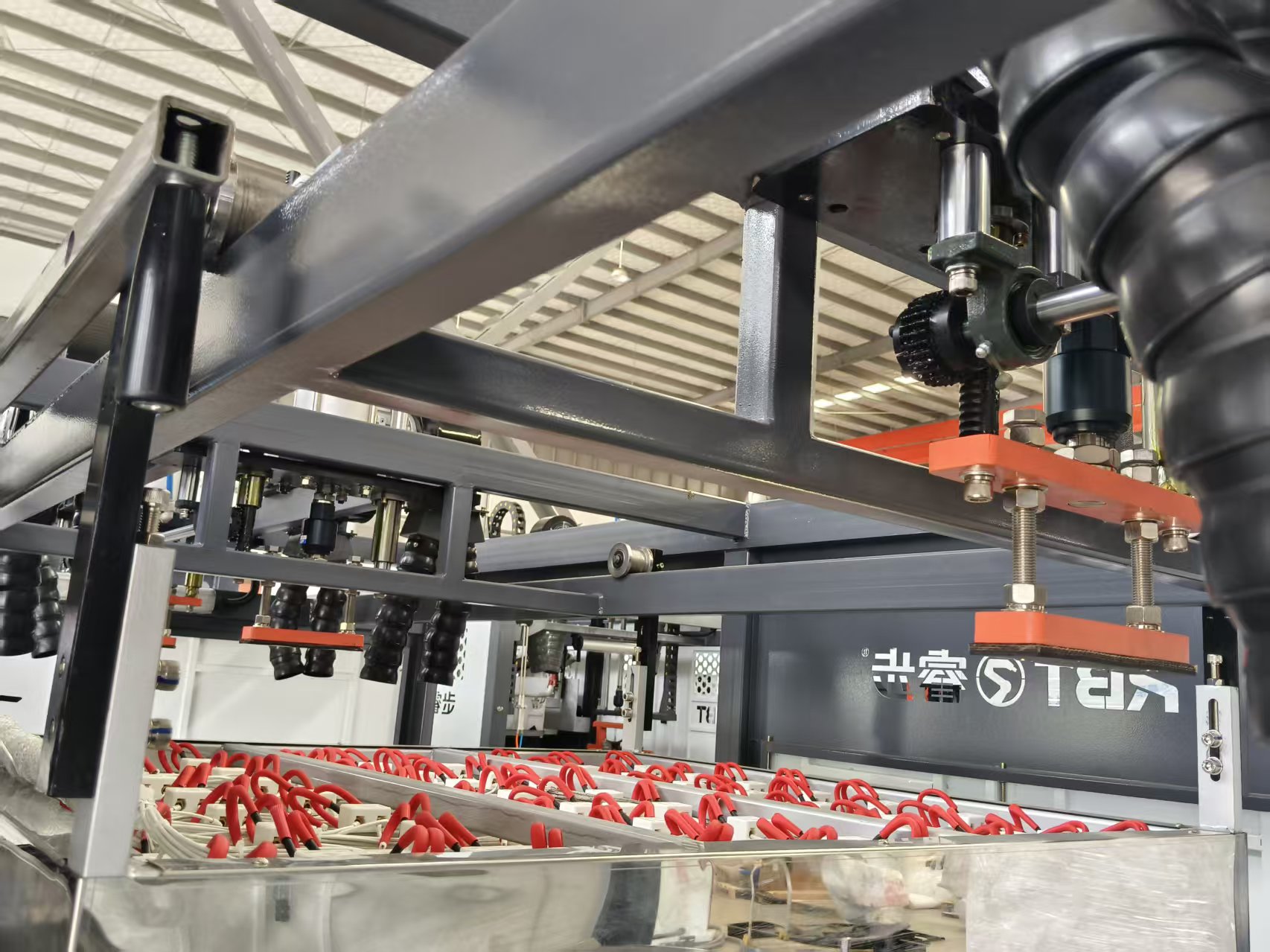

● The heating furnace part of this suitcase machine is divided into upper heating furnace and lower heating furnace, adopting one control one independent pressure regulating temperature control system. Among them, the upper heating furnace adopts 122 * 122 honeycomb far-infrared heating bricks; the lower heating rate is longitudinally arranged with densely arranged heating tubes, and four symmetrical heating tubes are arranged horizontally. The heating furnace can automatically output different temperatures corresponding to the temperature difference between the left and right stations (you can set the temperature compensation).
● The heating furnace on this suitcase machine can move left and right to preheat the mold.
● The manual operation and automatic operation of this machine can be arbitrarily selected, suitable for operators of various proficiency levels.
● An infrared grating is installed at the loading and unloading position to prevent the frame from falling down and pressing the operator.

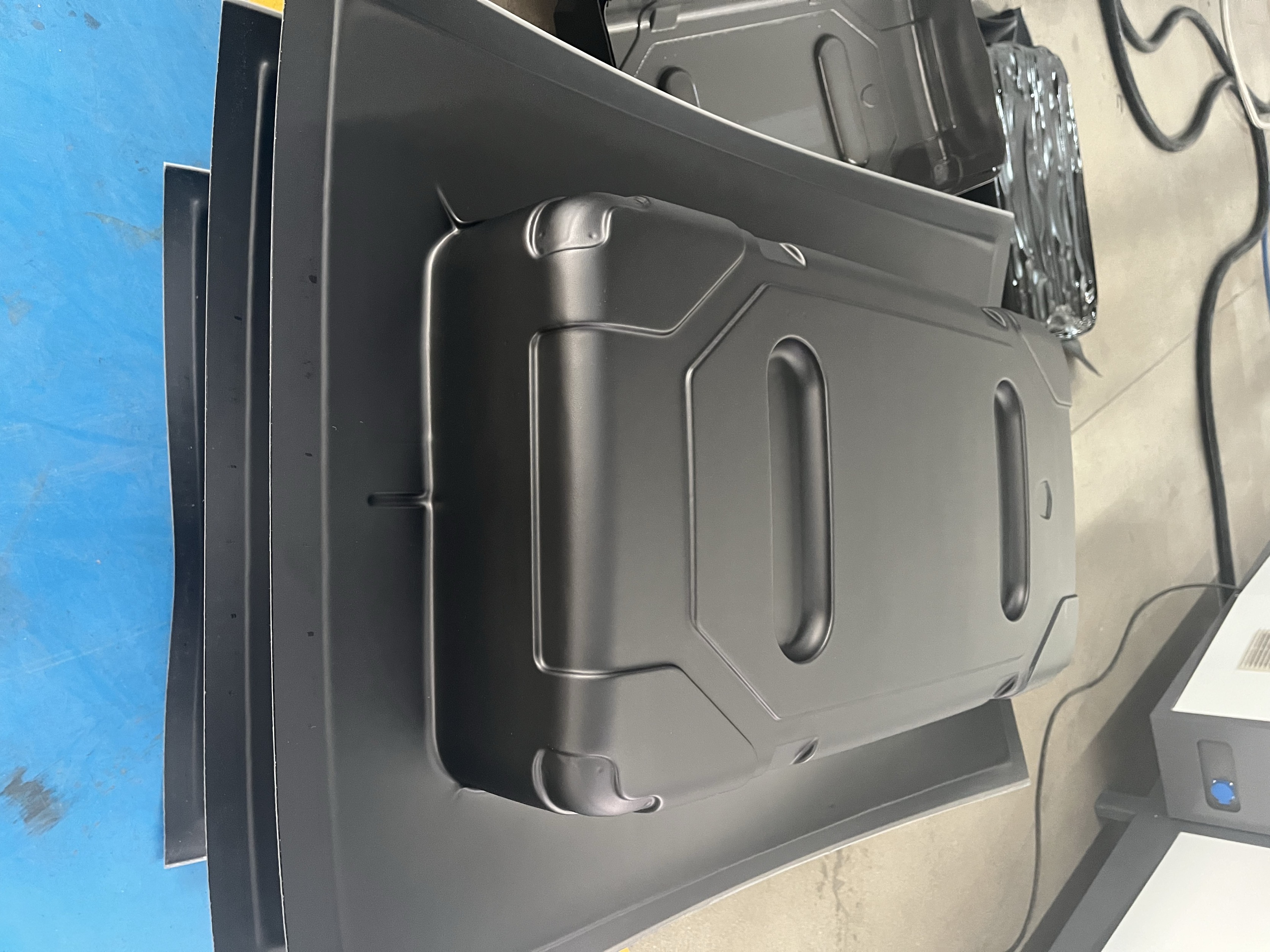

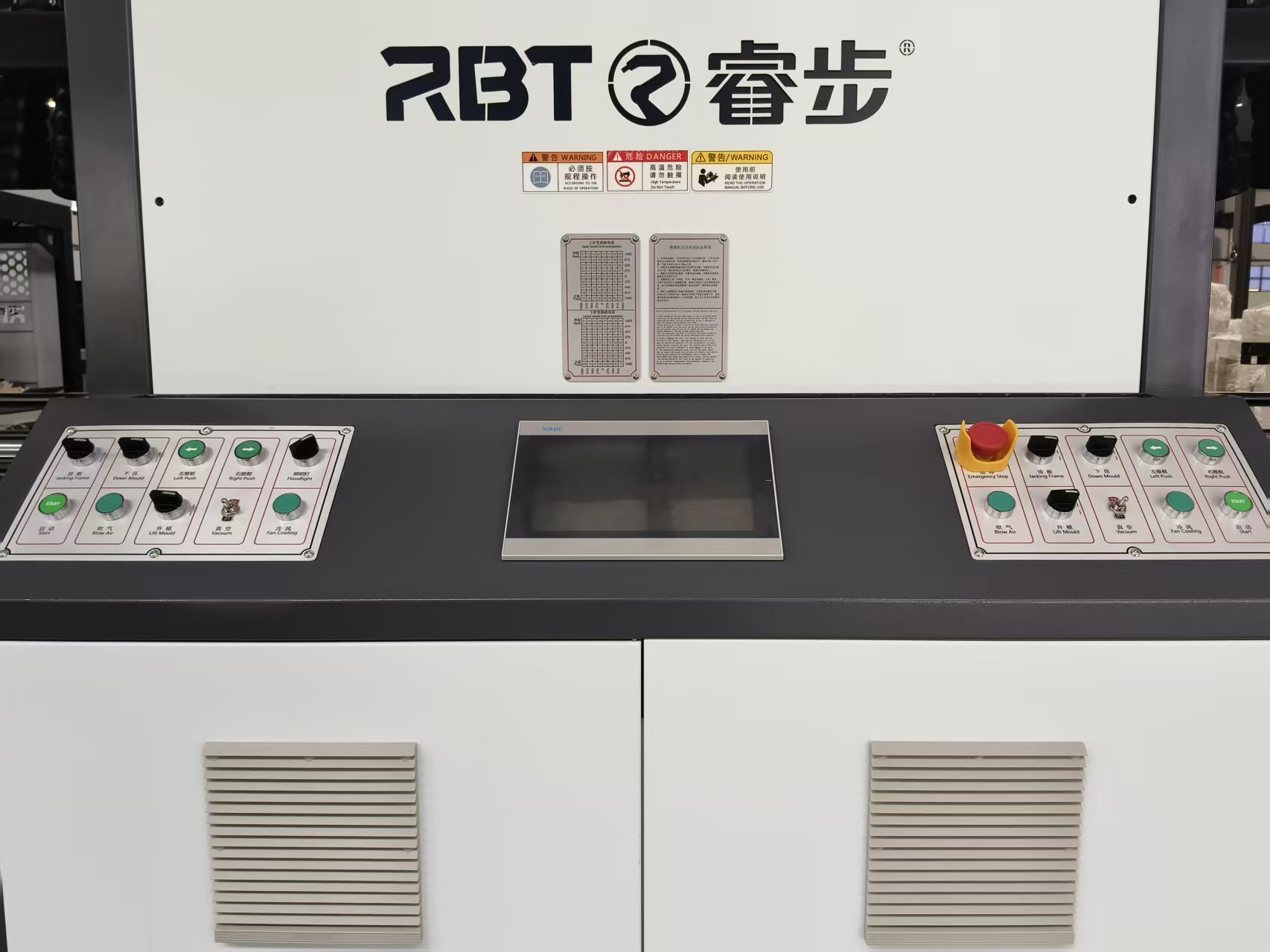

● The operation interface of this Vacuum Forming Machine is friendly, all parameters can be adjusted in real-time, and it has the function of saving recipes, which is particularly useful in the plastic sheet extruder machine for luggage production process.
● Additionally, this machine integrates seamlessly with a CNC plastic cutting machine for luggage, enhancing the overall efficiency of the luggage production line.
NO. | Item | Model | |||
RB-A8- 1(20 inch) | RB-A8-2(24 inch) | RB-A8-3 （28 inch） | RB-A8-4（30/32 inch） | ||
1 | Dimension | 2863× 1700× 2520mm | 3187× 1755× 2520mm | 3500× 1966× 2630 mm | 3600×2266× 2630mm |
2 | Weight | 2000KG | 2350KG | 2600KG | 2800KG |
3 | Power Voltage | 3-380V( 3 phase 5 lines） | 3-380V(3 phase 5 lines） | 3-380V(3 phase 5 lines） | 3-380V(3 phase 5 lines） |
4 | Frequency | 50HZ | 50HZ | 50HZ | 50HZ |
5 | Total Power | 38KW | 50KW | 59KW | 59KW |
6 | Heating Power |
| 48KW | 56KW | 56KW |
7 | Heating brick spec | 120* 120/ 500W | 120* 120/ 500W | 120* 120/ 500W | 120* 120/ 500W |
8 | Heating tube spec | ∅ 22*/1.5KW | ∅ 22*/1.5KW | ∅ 22*/1.5KW | ∅ 22*/1.5KW |
9 | Spec of upper electric furnace | (inner)680*980*110mm | (inner)815* 1005*110mm | (inner)950* 1130*110mm | (inner)1039* 1241*110mm |
10 | Upper electric furnace (heating brick arrangement) | 5*7 | 6*8 | 7*8 | 7*9 |
11 | Spec of bottom electric furnace (brick) | (inner) 680*980*45mm | ( inner)815* 1005*45mm | ( inner)946* 1035*45mm | (inner) 1039* 1241*45mm |
12 | Bottom electric furnace (heating brick arrangement) | 5*6 | 6*7 | 7*8 | 7*9 |
13 | Bottom furnace (heating tube arrangement) | 8+4+2(Vertical ) | 10+4+2（ Vertical） | 14+4+2（ Vertical ） | 16+4+2（Vertical ） |
14 | Vacuum capacity | 0.2m³ | 0.3m³ | 0.35m³ | 0.4m³ |
15 | Vacuum pressure | -0.07~0.09MPA | |||
16 | Max Plastic Sheet Spec( L*W) | 830*610mm | 960*747mm | 960*885mm | 1085*885mm |
17 | Maximum mold size(L*W*H) | 600*420* 190mm | 690*510* 190mm | 780*600* 190mm | 840*640* 190mm |
18 | Maximum frame size(L*W) | 680*500mm | 780*600mm | 880*700mm | 1035*830mm |
19 | Sheet Material and Thickness | ABS 、PC etc；1-4mm | |||
20 | ABS case max. output (pcs / H) | 110 | 105 | 90 | 80 |
21 | PC case max. output(pcs /H) | 85 | 80 | 70 | 60 |
22 | Air pressure | 0.65~0.75 | |||
23 | Air consumption | 550L/MIN | 650L/MIN | 800L/MIN | 900L/MIN |
24 | Power spec | 3-380V+N+ PE | 3-380V+N+ PE | 3-380V+N+ PE | 3-380V+N+ PE |
25 | Power line spec | 4- 16mm²*1- 10mm² | 4- 16mm²*1- 10mm² | 4-35mm²*1- 16mm² | |
Configuration
No. | Item | Origin/Brand | Remark |
1 | Heating brick | Chinese | |
2 | Pneumatic element | Taiwan AirTAC | |
3 | Temperature control module | Shanghai Aoyi | Modular voltage adjustment |
4 | PLC | Xinje | |
5 | Touch Screen | Shenzhen Weinview | |
6 | Travel Switch,Induction Switch | Japan Omron | |
7 | Driving Motor | Shenzhen Yankong | Precision Stepping motor |
8 | Electrical element | France Schneider/Zhejiang Zhengtai |
35KW
