RB-A8-1
RBT
84774090

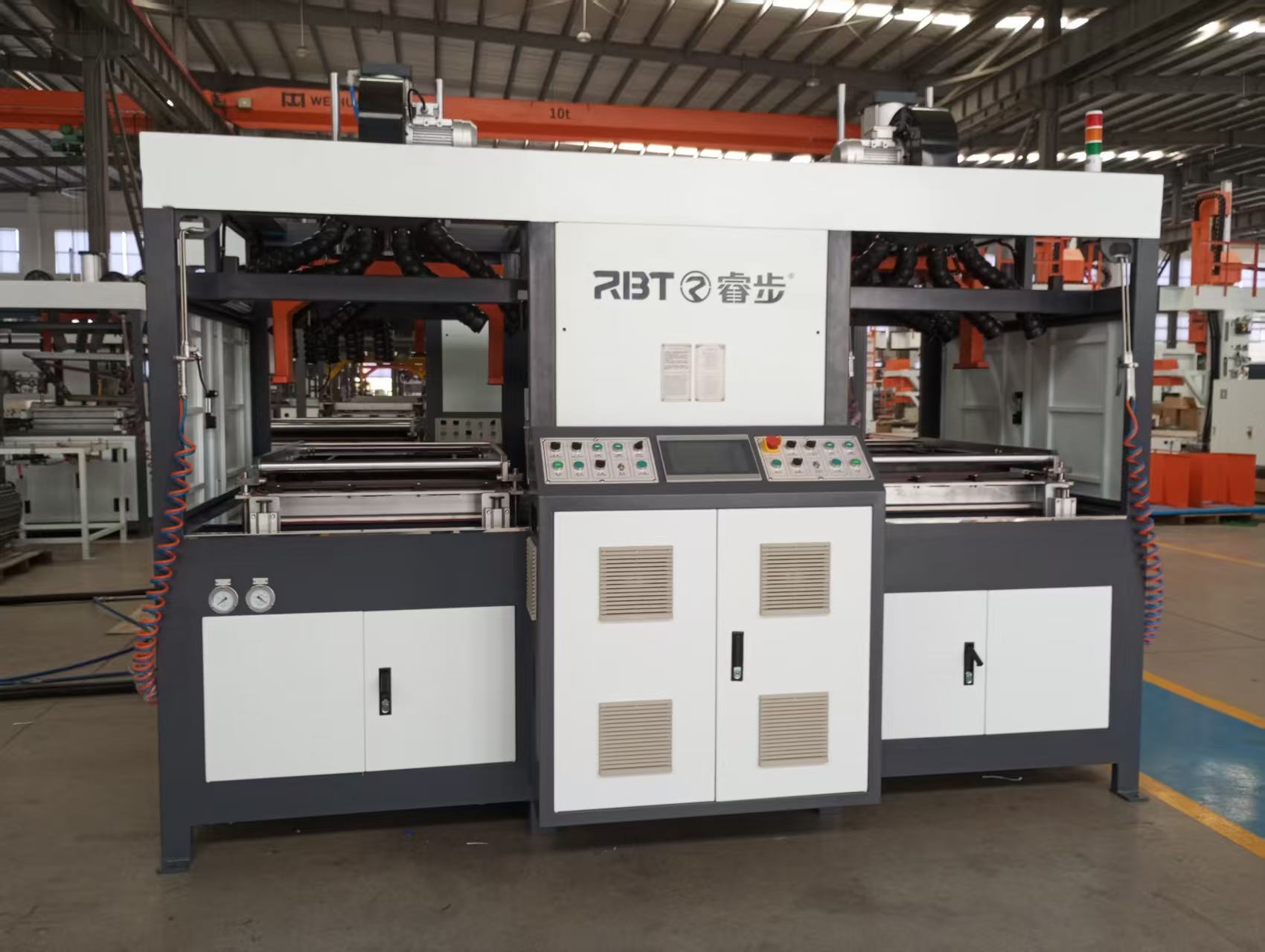

Why choose RBT luggage vacuum forming machine for higher level production
1. Compact Design: With a 20-inch forming area, this machine is perfect for producing high-quality luggage shells without consuming excessive floor space. Its optimized footprint makes it ideal for both large-scale factories and smaller workshops.
2. High-Precision Forming: Utilizing state-of-the-art vacuum forming technology, this machine ensures consistent and precise molding of materials, enabling the creation of durable and aesthetically pleasing luggage components. The powerful vacuum pump and precise temperature control system guarantee uniform distribution and flawless finish.
3. User-Friendly Interface: The intuitive control panel features a touch-screen interface, making it easy for operators to set parameters, monitor processes, and make adjustments in real-time. The interface supports multiple languages, catering to a diverse workforce.
4. Versatile Material Compatibility: Designed to work with a variety of thermoplastic materials such as ABS, polycarbonate, PVC, and more, this machine adapts to different production needs, offering flexibility without compromising quality.
5. Energy Efficiency: The machine is engineered with energy-saving components and an efficient heating system, reducing operational costs and supporting sustainable manufacturing practices.
6. Robust Construction: Built with high-quality materials and components, the 20-inch Luggage Vacuum Forming Machine is designed for longevity and reliability, ensuring consistent operation even under heavy-duty use.
7. Safety Features: Equipped with multiple safety mechanisms, including emergency stop buttons, thermal overload protection, and safety guards, this machine prioritizes the well-being of operators and maintenance staff.
8. Customizable Options: To meet specific production requirements, the machine offers a range of optional add-ons and customizations, such as different mold configurations, advanced automation features, and integrated cooling systems.
NO. | Item | Model | |||
RB-A8- 1(20 inch) | RB-A8-2(24 inch) | RB-A8-3 （28 inch） | RB-A8-4（30/32 inch） | ||
1 | Dimension | 2863× 1700× 2520mm | 3187× 1755× 2520mm | 3500× 1966× 2630 mm | 3600×2266× 2630mm |
2 | Weight | 2000KG | 2350KG | 2600KG | 2800KG |
3 | Power Voltage | 3-380V( 3 phase 5 lines） | 3-380V(3 phase 5 lines） | 3-380V(3 phase 5 lines） | 3-380V(3 phase 5 lines） |
4 | Frequency | 50HZ | 50HZ | 50HZ | 50HZ |
5 | Total Power | 38KW | 50KW | 59KW | 59KW |
6 | Heating Power |
| 48KW | 56KW | 56KW |
7 | Heating brick spec | 120* 120/ 500W | 120* 120/ 500W | 120* 120/ 500W | 120* 120/ 500W |
8 | Heating tube spec | ∅ 22*/1.5KW | ∅ 22*/1.5KW | ∅ 22*/1.5KW | ∅ 22*/1.5KW |
9 | Spec of upper electric furnace | (inner)680*980*110mm | (inner)815* 1005*110mm | (inner)950* 1130*110mm | (inner)1039* 1241*110mm |
10 | Upper electric furnace (heating brick arrangement) | 5*7 | 6*8 | 7*8 | 7*9 |
11 | Spec of bottom electric furnace (brick) | ( inner) 680*980*45mm | ( inner)815* 1005*45mm | ( inner)946*1035*45mm | ( inner) 1039* 1241*45mm |
12 | Bottom electric furnace (heating brick arrangement) | 5*6 | 6*7 | 7*8 | 7*9 |
13 | Bottom furnace (heating tube arrangement) | 8+4+2(Vertical ) | 10+4+2（ Vertical） | 14+4+2（ Vertical ） | 16+4+2（Vertical ） |
14 | Vacuum capacity | 0.2m³ | 0.3m³ | 0.35m³ | 0.4m³ |
15 | Vacuum pressure | -0.07~0.09MPA | |||
16 | Max Plastic Sheet Spec( L*W) | 830*610mm | 960*747mm | 960*885mm | 1085*885mm |
17 | Maximum mold size(L*W*H) | 600*420* 190mm | 690*510* 190mm | 780*600* 190mm | 840*640* 190mm |
18 | Maximum frame size(L*W) | 680*500mm | 780*600mm | 880*700mm | 1035*830mm |
19 | Sheet Material and Thickness | ABS 、PC etc；1-4mm | |||
20 | ABS case max. output (pcs / H) | 110 | 105 | 90 | 80 |
21 | PC case max. output(pcs /H) | 85 | 80 | 70 | 60 |
22 | Air pressure | 0.65~0.75 | |||
23 | Air consumption | 550L/MIN | 650L/MIN | 800L/MIN | 900L/MIN |
24 | Power spec | 3-380V+N+ PE | 3-380V+N+ PE | 3-380V+N+ PE | 3-380V+N+ PE |
25 | Power line spec | 4- 16mm²*1- 10mm² | 4- 16mm²*1- 10mm² | 4-35mm²*1- 16mm² | |
Configuration
No. | Item | Origin/Brand | Remark |
1 | Heating brick | Chinese | |
2 | Pneumatic element | Taiwan AirTAC | |
3 | Temperature control module | Shanghai Aoyi | Modular voltage adjustment |
4 | PLC | Xinje | |
5 | Touch Screen | Shenzhen Weinview | |
6 | Travel Switch,Induction Switch | Japan Omron | |
7 | Driving Motor | Shenzhen Yankong | Precision Stepping motor |
8 | Electrical element | France Schneider/Zhejiang Zhengtai |
35KW
